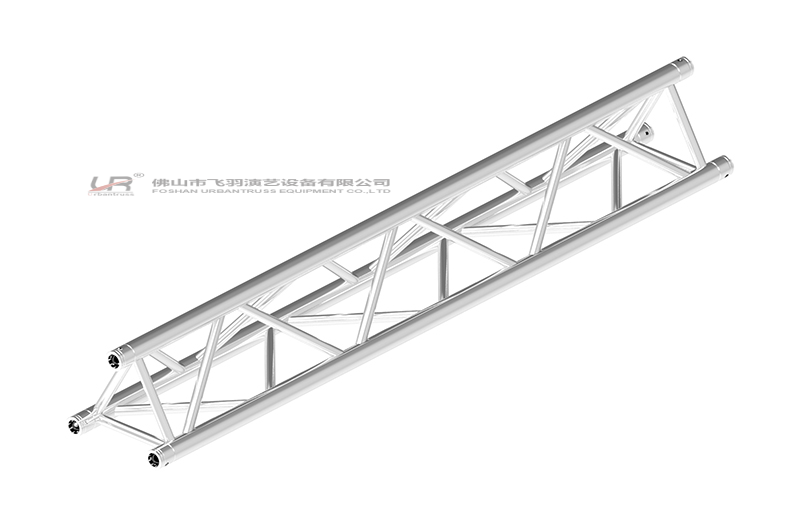

This is one of samll size truss,6082-T6 Aluminum material,with the advantage of beautiful appearance,samll volume but with stronger load capacity,lighter self-weight. Used for some samll performances,exhibitions etc.We provide three difference connection option:Conical,screw and hinge truss.Other irregular shapes can be ordered according to the customers requiremen.

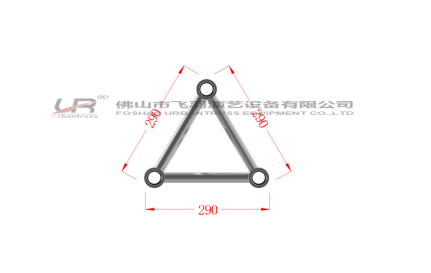

| Model | Description | Sizes | Length/mm | Weight/kg | ||||||||||||
| UR-TSC290-500 | Meterial：6082-T6 Main tube：50*2.0mm Horizonal tubes:20*2.0mm Diagonal:20*2.0mm Spacer:50*70mm | 290*290 | 500 | 3 | ||||||||||||
| UR-TSC290-1000 | 290*290 | 1000 | 4.63 | |||||||||||||
| UR-TSC290-1500 | 290*290 | 1500 | 6.5 | |||||||||||||
| UR-TSC290-2000 | 290*290 | 2000 | 8.1 | |||||||||||||
| UR-TSC290-2500 | 290*290 | 2500 | 9.9 | |||||||||||||
| UR-TSC290-3000 | 290*290 | 3000 | 11.6 | |||||||||||||
